Reflectance, Absorptance & Transmittance-

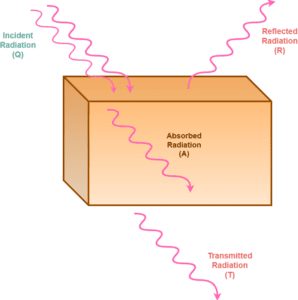

When thermal radiation falls on a body, they are partly reflected, absorbed and rest get transmitted.



Let Q be the amount of thermal energy incident on a body. Suppose-

• The part R is reflected
• The part A is absorbed
• The part T is transmitted

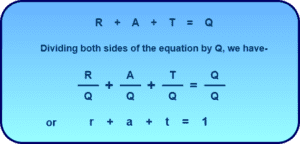

By energy conservation for the incident radiation, we must have-





Here,





Thus,

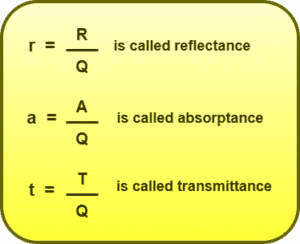

From here, we can define the three terms as follows-



Reflectance (r)-



It is defined as the ratio of the amount of thermal energy reflected by a body in a certain time to the total amount of thermal energy falling upon the body in the same time.





Absorptance (a)-



It is defined as the ratio of the amount of thermal energy absorbed by a body in a certain time to the total amount of thermal energy falling upon the body in the same time.

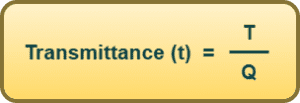

Transmittance (t)-



It is defined as the ratio of the amount of thermal energy transmitted by a body in a certain time to the total amount of thermal energy falling upon the body in the same time.





Special Cases-



Case-01: If a body does not transmit radiation-



We know-

r + a + t =1

Here, t = 0

So, r + a = 1

Clearly, if ‘r’ is more, ‘a’ is less and vice-versa.



Important Note From here, we infer that- Good reflectors are bad absorbers. Bad reflectors are good absorbers of heat.



Case-02: If a body neither reflects nor transmits any radiation-



We know-

r + a + t =1

Here, r = t = 0

So, a = 1

Such a body which neither reflects nor transmits but absorbs whole of the heat radiation falling on it is called a black body.



Important Note No real body can absorb 100% of the radiation falling on it. Therefore, the value of absorptance (a) is always less than unity for a real body.



Factors Affecting Reflectance, Absorptance and Transmittance of A Body-



The reflectance, absorptance and transmittance of a body depends on-

1. Nature of the surface of the body
2. Wavelength of incident radiation



From here, we infer that for radiations of different wavelength, a given body may have different values of reflectance, absorptance and transmittance. It is more useful to define these quantities for a given wavelength λ.



For any specific wavelength λ, we can write-





Important Note It is important to note that these quantities do not depend on the nature of material of the body.
